Threaded Dawn

A needle stitches a morning in golden thread: a sun, layered green hills, wildflowers and an indigo swallow appear in a wooden embroidery hoop.

Background, V1 Effects3D184 lines of codev1.0.0

In Craft & heritage, Art & illustration styles, Made for phones

Next: A Door Into Four SeasonsSurprise me

Threaded Dawn preview
Starting live preview…
00:00:00:00 / 00:00:00:01

Live, running the real source at reduced resolution.

Combine several clips and hand them over together from your sequence.

A finished film

It plays exactly as rendered and has nothing to adjust. The preview runs the same code your AI receives.

View code Sample video (751 KB)
Info

What it is

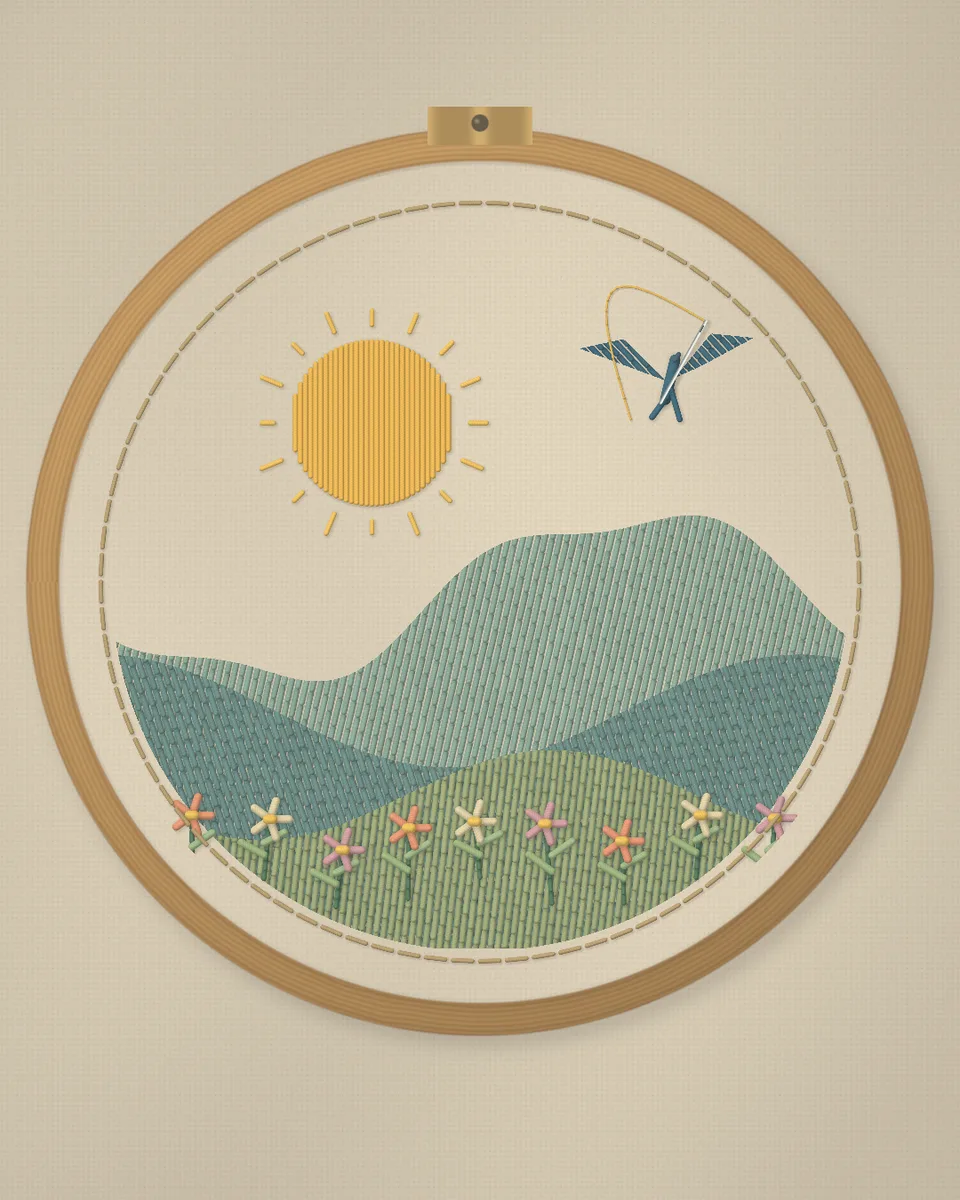

A silver needle draws a sunrise on linen in a maple embroidery hoop with a brass clasp. Golden floss builds a stitched sun, then layered green hills, tiny wildflowers and an indigo swallow. Every stitch is a raised, twisted thread that really extends in sequence and casts a small shadow on the weave, and the linen shows its warp and weft. It is a one-shot film that ends on the finished picture. The film has no settings.

Reuse it in your own idea

  • Craft brand intro: the picture is complete by about 6.5 s; hold it and add your logo.
  • Morning-routine opener: a gentle build that suits a slow voice-over.
  • Slow reveal: the stitches grow in sequence, so it can be cut at any point for a partial picture.

Which part is reusable

src/embroidered-dawn.js is the ingredient your AI reuses. demo.js is only the example scene around it, and uses the demo harness only for the demo.

Good to know

  • The film is finished: it has no settings. To change colours or timing, edit the shader.
  • It is composed for a 4:5 portrait frame.
  • The end does not return to the start, so repeating it is a hard cut.

Technical details

Technical details
Implementation
Three.js 0.185.1 (WebGL) · ES module src/embroidered-dawn.js
Exports
  • createEmbroideredDawn() => { scene, camera, setSize(width, height), update(time), dispose() }
Dependencies (exact)
  • three@0.185.1 (source) — Renderer and a full-screen shader material.
  • apw-runtime@1.0.0 (demo) — Demo harness.
How it fits a scene

Coordinates: Composed for a 4:5 portrait frame and measured by the frame height: in a wider frame the picture stays centred at full height and its background fills the sides; in a narrower one, such as 9:16, the sides are cropped.

Lighting: Soft studio light on linen: every stitch is shaded and casts a small shadow on the weave.

Timing: The needle moves across the hoop; the sun, hills, flowers and swallow are stitched in turn, each stitch extending as it is drawn.

Output
1080×1350, 30 fps, 8 s · procedural (computed from the frame number) · not a loop — A one-shot film: it builds to a finished picture that holds to the last frame, so the end does not return to the start.
Tested
Rendered 240 frames on 2026-10-10 in Chrome 154.0.8037.97 headless on Linux 7.0.0-38-generic (x64), Node 22.14.0 (WebGL 2 via SwiftShader (software)). Same frame twice from fresh pages: identical.
Performance
One full-screen fragment shader. About 9 ms a frame at 1080 by 1350 on an integrated Intel GPU (Iris Xe), and about 2 to 4 s a frame with software WebGL. Plays at 30 frames a second at full size on an integrated GPU.
Export a video yourself
Download the source, then in the folder: npm install npm run render -- embroidered-dawn/1.0.0 --out my-video.mp4Needs Node 18+, ffmpeg and Chrome/Chromium. Add --params my-settings.json (from Copy settings) for your own settings.
Version
1.0.0 · sha256:5afffc6ab822fbf9…
Files
License
MIT. Copyright (c) 2026 AI Pixel Wizard. Released under the MIT License. See LICENSE in this folder. License details
Provenance
From the owner's collection Twenty Impossible Worlds: the original GLSL ES 3.00 shader of the film “Threaded Dawn”, created with ChatGPT / Codex and used as published, wrapped for AI Pixel Wizard as a three.js full-screen shader in October 2026. The collection's synthesised soundtrack is not part of this ingredient.
